Pneumatic Deck Scaler

AMDS-100 Pneumatic Deck Scaler is a handle scalers which is powered by air,used in removing scales and surface paint from the ship deck.The scaler has a handle,allowing the operator to stand during...

Pneumatic Multi Head Scaler

Send Inquiry Contact US

Pneumatic Scaling Machine AMSM-60

Electric Scaling Machine AMDS-120

Content

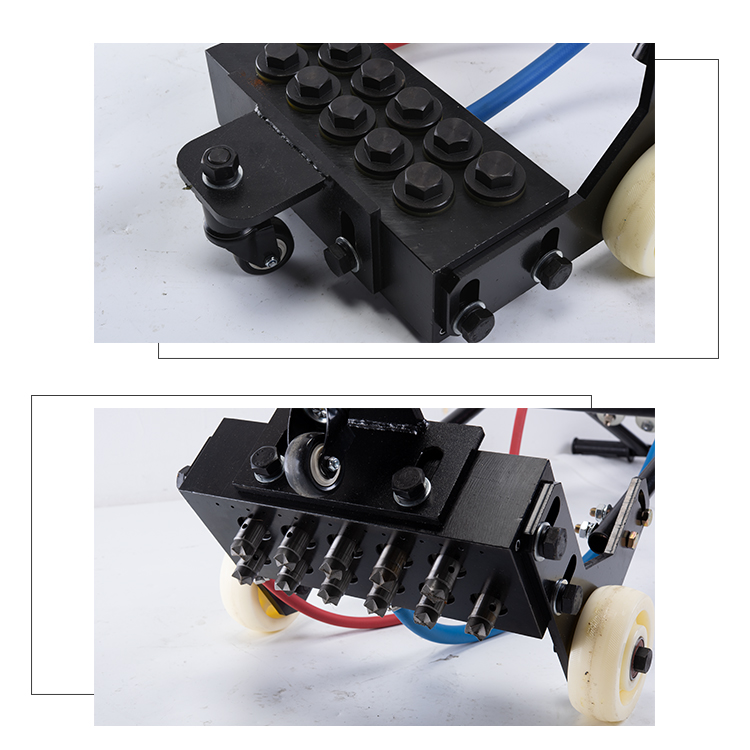

AMDS-100 Pneumatic Deck Scaler is a handle scalers which is powered by air,used in removing scales and surface paint from the ship deck.The scaler has a handle,allowing the operator to stand during use,relieving fatigue and protecting the eyes from dust and chipped metal or scale.

Technical data:

Code	590401
Model	AMDS-100
Scaling System	Reciprocating piston system
Air Pressure	0.59Mpa(6kgf/cm2)
Air Consumption	1982 lpm
Number of Piston	11pcs
Piston	Diam. 28mm
R.P.M	4000 blow/min
Scaling Width	300mm
N/G Weight	45/52kgs

Inquiry
