Scaling Machine Chain Impact Type AM-500

The sturdy, light and portable electric scaling machine applies to sustainable and heavy load rust removing work. It is effective for every kinds of surface to remove the rust, scratch and old pain...
Rated 5/5 based on 213 customer reviews
Share:
Content

The sturdy, light and portable electric scaling machine applies to sustainable and heavy load rust removing work. It is effective for every kinds of surface to remove the rust, scratch and old paint oxide layer, especially for the surface large rust removal equipment can not touch.

Instruction:

  1. Type AM-500 has two models which matched with 220V、 The scalers remove the rust on deck with centrifugal force when chain drum are driven by motor.
  2. The product adopts advanced waterproof socket and must be connected by professional electricians. Pay attention to the voltage and current indicated on electrical machine of this product. Before use it, start up the machine with no load 5 seconds.
  3. To a long life use, working time one and half hour recommended to has a rest minutes.
  4. When assemble the chain drum, carefully tighten bolts & nuts enough to avoid the chain loose.

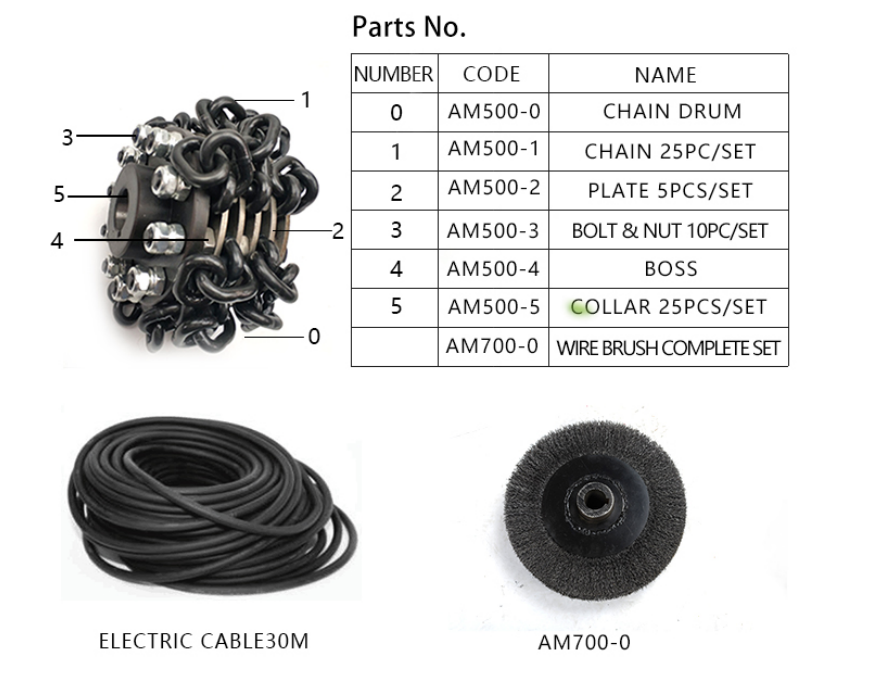

  5. The whole chain drum are association by 6 parts (AM500-0 to 5), those parts can be replaced after long time use
  6. AM700-0 Wire brush should buy separately, it mainly polishing the surface.
Power 1800W
Voltage(V) 220V 3phase, 440V 3phase
Electric Current(A) 220V 11A, 440V, 3.5A
Scaling Width 60MM
Working Efficiency 10m2/hour
Working Rotating Speed 1600 RPM
Free Running Speed 1800 RPM
Accessory Chain Drum , Cable 30m
